A rigid box, also called a set-up box, is built from thick chipboard wrapped in a separate printed sheet, and it must be designed from the product’s inside dimensions outward. Always produce two dielines, one for the board shell and one for the wrap. Skip either rule and you get a box that looks right on screen and fails at the prototype stage.
Three numbers govern whether that prototype fits: board caliper, lid clearance, and turn-in allowance.
- *Board caliper**: 1.2 mm to 3.0 mm chipboard, chosen by product weight and category
- *Lid clearance**: 1.0 mm to 1.5 mm between lid and base walls so the lid glides instead of jamming
- *Turn-in allowance**: roughly 15 mm of wrap paper folded over the board’s raw edge
**Pro Tip:** _Build your clearance and turn-in numbers into the file name of every dieline version. “JewelryBox\_1.2mm\_1.5clr\_v3” saves you from opening five identical-looking PDFs during a fire drill with a manufacturer._
Key Takeaways
Getting rigid box design right depends on designing to inside dimensions first, then locking board caliper, lid clearance, and turn-in allowance before touching artwork.
| Point | Details |
|---|---|
| Design to inside dimensions | Measure the product’s inside footprint first, then build outward through board and wrap dielines. |
| Two dielines are mandatory | Draft a separate dieline for the chipboard shell and one for the printed wrap. |
| Hold clearance and turn-in tight | Keep lid clearance at 1.0–1.5 mm and turn-in at roughly 15 mm to avoid loose or jammed lids. |
| Match caliper to category | Use 1.2 mm for jewelry, 1.5–2.0 mm for cosmetics and gift sets, and 2.5–3.0 mm for spirits. |
| Yuan Packaging as production partner | Yuanpackaging offers hand-finished rigid boxes with specialty finishes and large-order manufacturing capacity for brands ready to move from dieline to sample. |
Table of Contents
- What Are the Different Styles of Rigid Boxes?
- How Do You Create a Rigid Box Dieline?
- Which Board Caliper and Materials Should You Use?
- What Are the Key Steps in Rigid Box Manufacturing?
- How Should You Design Rigid Boxes for Jewelry, Perfume, and Cosmetics?
- How Does a Production-Ready Brief Work in Practice?
- What Actually Makes Rigid Box Design Fail?
- Get a Rigid Box Built Right the First Time
- Sources
What Are the Different Styles of Rigid Boxes?
Style dictates everything downstream, from how many dielines you draft to how a manufacturer prices the job. The most common structures used for premium packaging are:
- *Two-piece (base and lid)**: the workhorse of rigid box packaging, simple to tool and forgiving on tolerances.
- *Magnetic closure**: a hinged or folding lid held shut with embedded magnets, popular for jewelry and cosmetics where a satisfying “click” matters.
- *Drawer box (slide box)**: a sleeve with an inner tray that slides out, common for cosmetics sets and multi-item kits.
- *Book-style (flip box)**: opens like a hardcover book, often used for gift sets and media-style presentations.
- *Shoulder and neck box**: a telescoping lid with a stepped shoulder, standard for spirits bottles and perfume.
- *Collapsible rigid box**: folds flat for shipping, then locks into shape at the point of use, trading a slightly higher unit cost for major freight savings.
- *Telescoping lid box**: the lid fully covers the base sidewalls, giving generous depth for bulkier products.
Drawer and telescoping styles need extra sleeve clearance on top of the base lid clearance, which changes your wrap dieline math. Magnetic boxes add a recess allowance for the magnet housing. Collapsible structures cost more per unit but cut warehousing and shipping costs at scale, a trade-off worth flagging early with your rigid box manufacturer.
How Do You Create a Rigid Box Dieline?

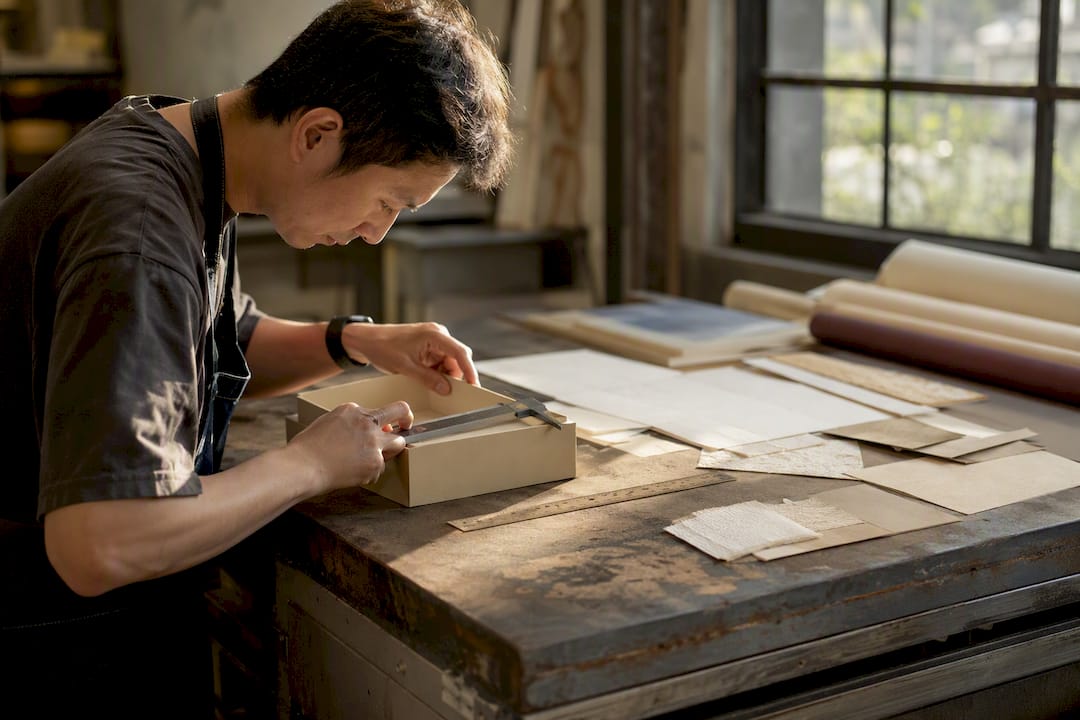

Every rigid box dieline starts with the product, not the box. Measure the item’s inside dimensions first: length, width, and depth, with enough play for it to slide in and out without friction. From there, the workflow builds outward in four steps.
Add the board caliper to each wall to get your outside dimensions. A 2 mm board on a 200 mm inside length gives you 204 mm outside (2 mm on each side). Add lid clearance, typically 1.5 mm, so the lid slips over the base without binding. Then calculate wrap width using the formula: **wrap width = outside length + (depth × 2) + (turn-in × 2)**.
Here’s the math worked through on a real product: inside dimensions of 200 mm × 100 mm × 50 mm with 2 mm board give an outside length of 204 mm and an outside depth of 55 mm. With a standard 15 mm turn-in, wrap width comes out to 347 mm (207 + 110 + 30).
| Tolerance | Standard range | What it controls |
|---|---|---|
| Lid clearance | 1.0–1.5 mm | Lid glide vs. looseness |
| Turn-in allowance | ~15 mm | Wrap coverage over raw board edge |
| Bleed | 3 mm | Print coverage past the trim line |
| Board caliper | 1.2–3.0 mm | Structural rigidity and heft |
**Pro Tip:** _When a lid feels loose after the first sample, don’t shave the board caliper down. Add 0.5 mm back into the wrap turn-in first, since a thin turn-in is the more common culprit behind sloppy lid fit._
Which Board Caliper and Materials Should You Use?
Board caliper is the single biggest lever for how a rigid box feels in the hand, and it should match the product category rather than a designer’s gut instinct. Industry-standard calipers run from 1.2 mm for small jewelry pieces up to 2.5–3.0 mm for premium spirits and large gift sets, with 2.0 mm serving as the general-purpose standard for apparel, electronics, and mid-size gift boxes.
- *1.2 mm**: small jewelry boxes, ring boxes, watch cases
- *1.5 mm**: cosmetics, candles, mid-weight retail items
- *2.0 mm**: apparel, gift sets, consumer electronics
- *2.5–3.0 mm**: spirits, large hampers, heavyweight luxury sets
Wrap material choice determines finish compatibility. Soft-touch laminate reads as understated and modern but shows fingerprints on dark colors. Foil stamping and emboss/deboss work best on smooth, uncoated wraps. Fabric wraps, like linen or silk-effect stock, need a slower wrapping process and typically raise unit cost. Rigid boxes routinely run three to four times the cost of a comparable folding carton, and finish choice is usually the biggest swing factor inside that gap. Interior inserts, whether die-cut EVA foam, paper-wrapped chipboard trays, or velvet-lined recesses, need their own clearance built in, generally 1 to 2 mm looser than the product’s exact footprint so it seats without forcing.
What Are the Key Steps in Rigid Box Manufacturing?
Production moves through a fixed sequence, and each stage catches errors the previous one missed. The typical path runs as follows:
- *Material selection**: confirm board caliper and wrap stock against the design brief.
- *Dieline finalization and digital proof**: both dielines get locked and checked against the artwork.
- *Die cutting and V-grooving**: the board is cut and scored along fold lines.
- *Folding and stay-taping**: corners are taped for structural integrity before wrapping.
- *Wrapping**: the printed wrap is glued and turned in around the board shell.
- *Magnet embedding** (if applicable): magnets are recessed into a routed pocket, not surface-mounted.
- *Insert assembly and final QC**: inserts are seated, and the finished box is checked for fit, alignment, and finish defects.
Your art file needs to mark magnet position and recess depth explicitly, since a magnet set too shallow will show through the wrap as a bump. Glue tab specs, turn-in lines, and safe zones for text all belong on the dieline, not left to the printer’s discretion, a habit covered well in artwork prep guidance. The most common QC rejections come from misaligned wrap seams, lid clearance that’s too tight after wrap thickness is added, and magnet pockets that weren’t accounted for in the board dieline.
**Pro Tip:** _Always request a physical sample before greenlighting a production run, even on a repeat order with a new finish. Foil and emboss both add a fraction of a millimeter that a digital proof can’t show you._
How Should You Design Rigid Boxes for Jewelry, Perfume, and Cosmetics?
Logo placement rules change with the lid style. On a two-piece lid, center the logo with generous white space; on a shoulder-neck box, keep branding on the front-facing panel below the shoulder line so it survives the telescoping fold. Foil and emboss read as discreet luxury at small scale, while a full-panel spot UV or a fabric wrap reads as louder, more attention-grabbing premium, useful when a product needs shelf presence rather than restraint.
The wrap is the brand’s canvas, and the board is its skeleton. Treat them as two connected jobs, not one file split in half.
Three briefs to start from:
- *Jewelry box**: 1.2 mm board, soft-touch wrap, single foil-stamped logo, EVA foam insert with a 1 mm clearance recess.
- *Perfume shoulder-neck box**: 2.0 mm board, matte wrap, spot UV accent, 15 mm turn-in with reinforced corners for the telescoping lid.
- *Cosmetics drawer set**: 1.5 mm board, emboss/deboss logo, paper-wrapped chipboard tray insert, extra 1 mm sleeve clearance for smooth drawer action.
How Does a Production-Ready Brief Work in Practice?
A finished dieline means little without a manufacturer who can hold tolerance across a full production run. Yuan Packaging has built rigid boxes and specialty finishes for beauty and spirits brands for over 25 years, with the capacity to manage large-volume orders without losing hand-finished detail.
A brief worth sending to any manufacturer should specify:
- Inside dimensions (length, width, depth) in millimeters
- Board caliper and wrap material
- Finish list (foil, emboss, soft-touch, spot UV)
- Insert type and material
- Magnet spec and recess depth, if applicable
- MOQ and target lead time
The first prototype almost always surfaces one or two fixable issues, usually lid clearance or wrap seam alignment, which is exactly what that sample round is for. Review the full product range before finalizing your brief so material and finish options match what’s actually manufacturable at your volume.
What Actually Makes Rigid Box Design Fail?

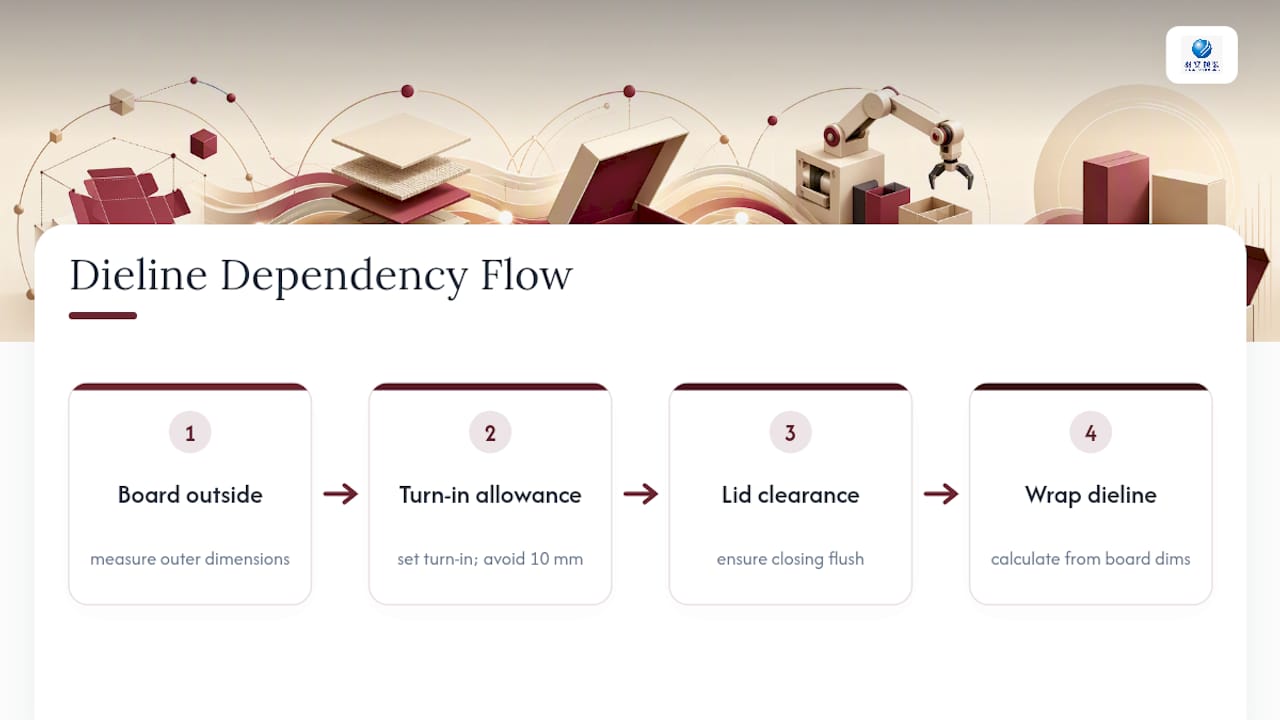

Most rigid box problems trace back to one habit: designing the wrap and the board as if they were unrelated files. They aren’t. A wrap dieline is a direct function of the board dieline’s outside dimensions, and treating them as separately editable documents is how turn-in allowances drift and lids stop closing flush.
The conventional advice tells designers to “leave room for error” without saying how much or where. That’s not useful. The real fix is narrower than people expect: get lid clearance and turn-in allowance right, and most other fit issues resolve themselves. Board caliper matters far less than designers assume once you’re inside the 1.2 to 3.0 mm range that fits your product category. Chasing a thicker board for perceived luxury when the real issue is a sloppy 10 mm turn-in wastes budget without fixing the fit.
If you take one thing from this into your next brief, make it this: build your dieline math before you touch artwork, not after. A gorgeous foil pattern on a box that doesn’t close properly is a wasted print run, not a premium product.
_— Xavier_
Get a Rigid Box Built Right the First Time
Getting dieline math correct on paper is one thing. Getting a manufacturer to hold 1.5 mm lid clearance across a 10,000-unit run is another. Yuanpackaging builds hand-finished rigid boxes for beauty, spirits, and lifestyle brands, combining artisanal wrapping and magnet-setting with the tolerance discipline that large orders demand.
If you’re weighing rigid boxes against a lower-cost alternative, our breakdown of rigid boxes versus folding cartons walks through where each structure earns its cost. When you’re ready to move from dieline to sample, send your inside dimensions, board caliper, and finish list to the team through the rigid box product page and request a prototype quote.
FAQ
What Are the Different Styles of Rigid Boxes?
The main styles are two-piece, magnetic closure, drawer, book-style, shoulder-neck, collapsible, and telescoping lid boxes, each suited to different product shapes and unboxing experiences.
How Do You Make Your Own Rigid Box Dielines?
Measure the product’s inside dimensions, add board caliper to get outside dimensions, then build a second wrap dieline using outside length plus double the depth plus double the turn-in allowance.
What Does “Rigid Box” Mean?
A rigid box, or set-up box, is built from high-density chipboard wrapped in printed paper, unlike a folding carton, which is a single-piece structure that ships flat.
What Are the Standard Dimensions of a Rigid Box?
There’s no universal standard size since rigid boxes are built around the product, but board caliper typically runs 1.2 mm to 3.0 mm and lid clearance stays within 1.0 mm to 1.5 mm regardless of overall box size.
Who Can Manufacture a Custom Rigid Box at Scale?
Yuanpackaging manufactures hand-finished rigid boxes with specialty finishes for beauty, spirits, and lifestyle brands, handling both prototype runs and large-volume production orders.
