Custom Shoulder-Neck Rigid Boxes
An inner collar lifts the base above the lid line, so the lid seats on a visible shoulder instead of swallowing the box.
- Inner Collar
- Defined Shoulder
- Two-Material Look
- Foil & Emboss
- Fitted Inserts
Overview

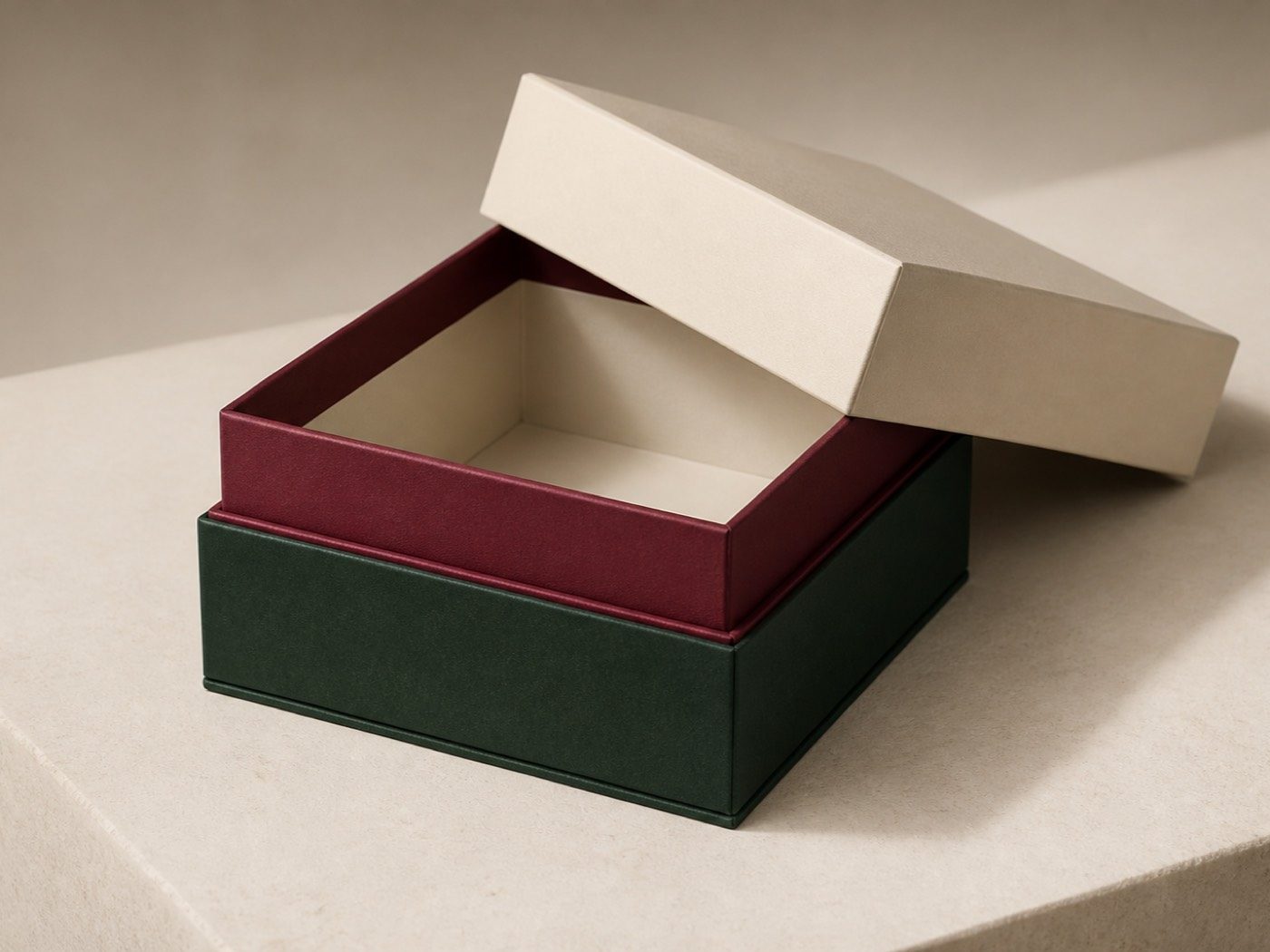

A shoulder-neck box is a two-piece box with a third component: an inner collar, fixed to the base, that stands proud of it. The lid drops over the collar and stops against a shoulder, so instead of one box swallowing another you get a deliberate horizontal line where the two meet.
That line is why the structure is specified. It lets two materials or two colours meet at a designed point — a textured lid over a black base, or a printed lid with a metallic collar showing between them. On a plain telescoping box that junction is an accident of fit; here it is a design element.
The collar also does structural work. It aligns the lid every time it is replaced, takes the wear that would otherwise fall on the base walls, and makes the closure feel more precise on the tenth opening than a simple friction fit does on the second.
Variants
Standard Shoulder-Neck
Lid, collar and base in one material family, with the shoulder line as the only break.
Contrast Collar
The collar in a different colour or material so a band of contrast shows between lid and base.
Metallic Collar
A metallised or foiled collar reading as a metal band around the box.
Deep-Neck Presentation Box
A taller collar for bottles and tall products, holding them upright without a separate cradle.
Shoulder-Neck with Window Lid
A die-cut lid over the collar, revealing the product while the collar frames it.
Selected work
Board & material options
Greyboard
The dense structural core of a rigid box.
Not printed — it is wrapped. Thickness is specified against the weight the box carries and the opening feel you want.
Coated One Side (C1S)
Coated on the printing face, uncoated on the reverse.
The default carton and wrap board. You are paying for coating only where the print goes, so it is the economical choice whenever the inside face is not seen.
Textured & Felt-Marked
Embossed linen, laid and felt surfaces.
Carries a tactile identity with no extra finishing pass. Print sits softer on texture — fine detail and photographic images lose bite, so it suits type and blind emboss better than imagery.
Leather Grain
An embossed hide pattern on paper.
Used on rigid box wraps where the brief asks for leather without the cost, the weight, or the sourcing questions.
Finishing options
Hot Foil Stamping
Metallic foil applied by heated die, registered to the print.
Gold, silver, copper and coloured foils. Applied flat before any wrapping or forming, so registration is controlled on a sheet rather than on a curve.
Embossing
Raised relief pressed into the surface from behind.
Can be registered over foil for a sculpted metallic mark. Sequence matters: emboss after foil is standard, and reversing it damages the foil surface.
Spot UV
Gloss varnish applied to selected artwork elements.
Highest contrast over a matte or soft-touch base. On a gloss laminate it barely reads — the base finish decides whether spot UV is worth paying for.
Soft-Touch Lamination
A velvet matte film laminated to the printed surface.
Changes how the pack feels more than how it looks, and hides fingerprints on dark artwork. The most requested finish on premium spirits and skincare.
What you can customise
- Internal dimensions built around your product
- Board thickness against weight and opening feel
- Wrap material, print and finishing combination
- Insert material, cavity layout and lining colour
- Ribbon, closure and hardware detail
- Export carton count and pallet configuration
Specifications
| Minimum order quantity | Typically 500–1,000 units for premium gift boxes with complex finishing |
|---|---|
| Production lead time | 15–20 working days after artwork approval; complex gift boxes 25–30 working days |
| Printing | Koenig & Bauer Rapida 106 eight-colour offset — CMYK and Pantone spot colours |
| Box forming | Two Hongming 6418K automated box lines, with hand wrapping and assembly for detail work |
Terms for this specification
- Sampling
- Presentation-quality sample in 5–7 working days. The sample cost is credited against your first approved production order.
- Colour matching
- Pantone references and physical samples are used where the selected print process supports them. The approval method follows the substrate, artwork and process.
- Certifications
- ISO 9001, ISO 14001:2015, ISO 45001 and China Environmental Labelling (Ten-Ring). ISO 22000 applies to eligible food-contact work.
- Sustainable options
- FSC-certified or recycled-content paper and board, water-based inks and adhesives, and fibre-based fitments are available where the selected construction supports them.
What drives the cost
We do not publish a price list, because no two specifications are alike. The levers that decide a quote are consistent, though.
Quantity
Most of the cost of a print job is set-up — plates, dies, make-ready, the first good sheet. Doubling a run rarely doubles the price, which is why it is worth asking for two or three volumes on the same quote.
Structure
A rigid box is formed, wrapped and often assembled by hand; a folding carton is die-cut and glued in one pass. Structure is usually the single biggest difference between two otherwise identical packs.
Material
Board grade and wrap stock. Specialty and textured papers cost more per sheet, but can replace a finishing pass — sometimes the cheaper route to the same effect.
Finishing passes
Each of foil, emboss, spot UV and lamination is a separate pass through a machine. Two effects cost roughly twice one, so the question is always which effect earns its place.
Tooling
Dies, emboss plates and foil blocks are one-off costs carried by the first order and reused on every repeat. Repeat runs of an approved specification are materially cheaper than the first.
Design & artwork
From an artwork check, through a dimensioned dieline and print-ready files, to a full concept package across a range — done by the factory that will make it.
Applications
Spirits & Wine
Bottle presentation boxes where the collar holds the bottle upright and frames it.
Fragrance
Coffrets where a metallic collar band carries the brand mark between lid and base.
Watches & Jewellery
Precise closures that still feel exact after months of retail handling.
Premium Electronics
Product boxes where the collar aligns the lid and protects the base edges.
Why Yuan Packaging
- Two Hongming 6418K automated box lines plus hand finishing on every structure
- Presentation-quality structural sample in 5–7 working days, credited against your first order
- Printing, foil, embossing and lamination applied in-house before wrapping
- Rigid boxes produced for Chinese spirits houses including Guoyuan and Yanghe distilleries
Frequently asked questions
How is this different from a plain lid and base box?
A plain lid drops over the base and hides the junction. A collar raises the base so the lid stops on a visible shoulder, giving you a designed line where two materials can meet — and a closure that stays aligned over repeated use.
Does the collar add much cost?
It is a third wrapped component, so yes, some. Against that it protects the base edges and keeps the closure aligned, which matters on a box that will be opened repeatedly in a shop rather than once at home.
Can the collar be a different material?
Yes, and it is usually the point. A metallic or contrasting collar shows as a band between lid and base — the cheapest way to get a two-material look without wrapping the whole box twice.
