Custom Braille-Embossed Pharmaceutical Cartons
A pharmaceutical carton with tactile Braille integrated into the panel plan, artwork and physical sampling process.
- Tactile Braille Detail
Overview
Braille embossing is part of the carton structure, not a graphic effect added at the end. Its supplied text, position and required geometry have to be settled alongside the dieline so the tactile area does not conflict with creases, glue seams, dense printed copy or other finishing elements.
The physical sample is the decision surface. It shows the raised detail on the selected board, its relationship to the printed panel and whether the approved placement survives folding and erection as intended. Market requirements and the Braille content remain inputs from the brand or its authorised regulatory team; production follows the confirmed specification.
What to decide for this format
Approved Braille Content
Supply the market-approved wording and geometry requirements before the emboss layout and tooling are prepared.
Panel Position & Conflicts
Place the tactile area clear of creases, seams and competing content, then verify the relationship on the folded sample.
Board & material options
Ivory Board (FBB)
Bright folding boxboard with a smooth print face.
The standard carton stock in cosmetics and pharmaceutical work — clean creasing, reliable folding, white enough for small regulatory type.
Coated One Side (C1S)
Coated on the printing face, uncoated on the reverse.
The default carton and wrap board. You are paying for coating only where the print goes, so it is the economical choice whenever the inside face is not seen.
Coated Two Sides (C2S)
Coated on both faces for print inside and out.
Specify when the inside of the box is part of the design — an unboxing reveal, a printed inner lid, or a sleeve seen from both sides.
White Kraft
Strong uncoated white fibre with a natural surface.
Reads honest rather than glossy, and takes one or two spot colours well. Recycled and FSC-certified grades are available where a materials policy applies.
Finishing options
Die Cutting
Custom shapes, windows and cut-outs.
Windows, shaped lids, handle apertures and label outlines. A window can be left open or patched with clear film depending on whether the product needs protecting.
Hot Foil Stamping
Metallic foil applied by heated die, registered to the print.
Gold, silver, copper and coloured foils. Applied flat before any wrapping or forming, so registration is controlled on a sheet rather than on a curve.

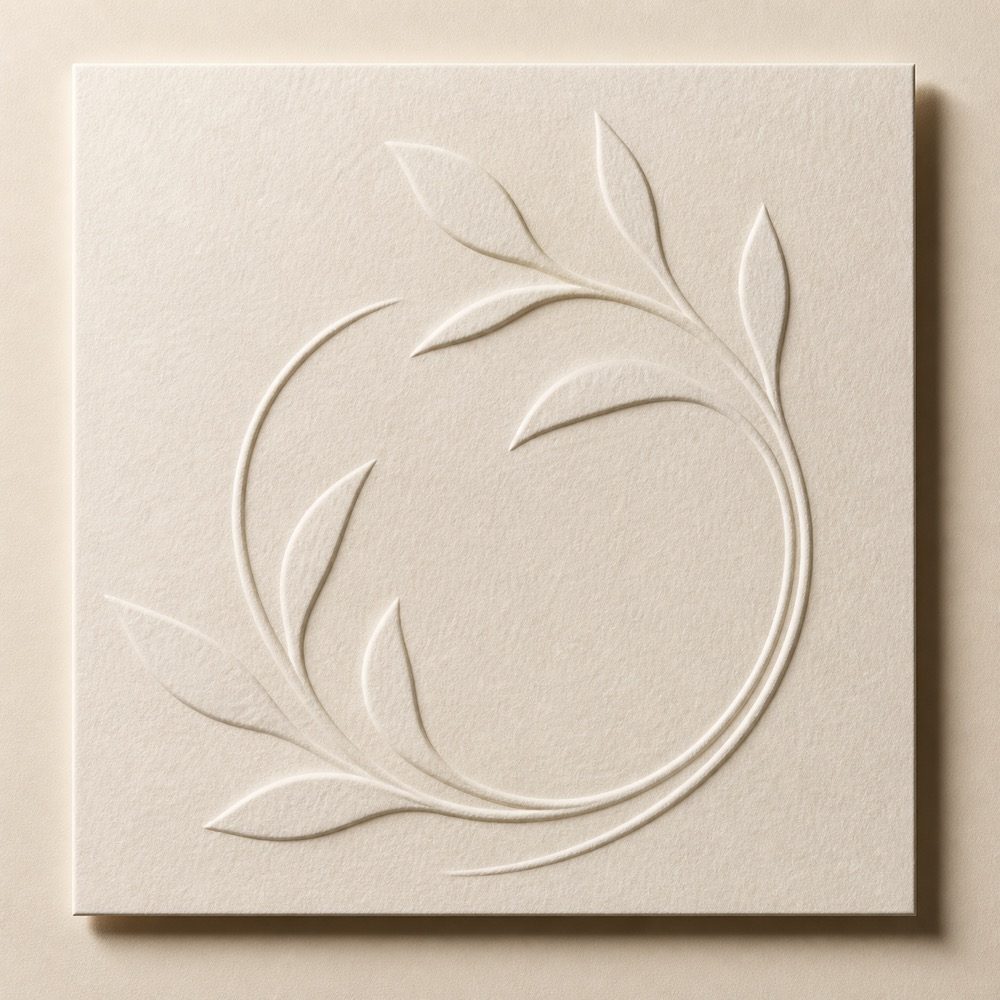

Embossing
Raised relief pressed into the surface from behind.
Can be registered over foil for a sculpted metallic mark. Sequence matters: emboss after foil is standard, and reversing it damages the foil surface.
Spot UV
Gloss varnish applied to selected artwork elements.
Highest contrast over a matte or soft-touch base. On a gloss laminate it barely reads — the base finish decides whether spot UV is worth paying for.
Materials
Coated Folding Boxboard
The standard pharmaceutical carton stock — clean white surface for small type, reliable creasing and consistent runability.
FSC-Certified & Recycled Board
Certified or recycled-content stock with water-based inks where your materials policy calls for it.
Printing & Finishes
Offset Printing
CMYK and Pantone spot colours on the Rapida 106 — 0.1 mm registration is what keeps small regulatory type sharp across a long run.
Braille Embossing
Tactile embossing to the position and geometry confirmed on the approved sample.
Die Cutting, Creasing & Gluing
Automated converting so cartons arrive flat and erect square — a carton that jams your line is a production failure, not a cosmetic one.
What you can customise
- Carton structure sized to the primary pack
- Approved information layout and language versions
- Supplied Braille content, position and required geometry
- Coding area where the specification requires it
- Board grade and fold relationship around the tactile panel
Specifications
| Minimum order quantity | Standard cartons from 1,000 units |
|---|---|
| Production lead time | 15–20 working days after artwork approval |
| Printing | Koenig & Bauer Rapida 106 eight-colour offset — 0.1 mm register at 18,000 sheets per hour |
| Quality management | ISO 9001 quality management, ISO 14001:2015 environmental management, ISO 45001 |
| Colour consistency | Pantone spot colours with a physical reference retained between repeat orders |
Terms for this specification
- Sampling
- Presentation-quality sample in 5–7 working days. The sample cost is credited against your first approved production order.
- Colour matching
- Pantone references and physical samples are used where the selected print process supports them. The approval method follows the substrate, artwork and process.
- Certifications
- ISO 9001, ISO 14001:2015, ISO 45001 and China Environmental Labelling (Ten-Ring). ISO 22000 applies to eligible food-contact work.
- Sustainable options
- FSC-certified or recycled-content paper and board, water-based inks and adhesives, and fibre-based fitments are available where the selected construction supports them.
What drives the cost
We do not publish a price list, because no two specifications are alike. The levers that decide a quote are consistent, though.
Quantity
Most of the cost of a print job is set-up — plates, dies, make-ready, the first good sheet. Doubling a run rarely doubles the price, which is why it is worth asking for two or three volumes on the same quote.
Structure
A rigid box is formed, wrapped and often assembled by hand; a folding carton is die-cut and glued in one pass. Structure is usually the single biggest difference between two otherwise identical packs.
Material
Board grade and wrap stock. Specialty and textured papers cost more per sheet, but can replace a finishing pass — sometimes the cheaper route to the same effect.
Finishing passes
Each of foil, emboss, spot UV and lamination is a separate pass through a machine. Two effects cost roughly twice one, so the question is always which effect earns its place.
Tooling
Dies, emboss plates and foil blocks are one-off costs carried by the first order and reused on every repeat. Repeat runs of an approved specification are materially cheaper than the first.
Design & artwork
From an artwork check, through a dimensioned dieline and print-ready files, to a full concept package across a range — done by the factory that will make it.
Applications
Prescription Medicines
Unit cartons with leaflets, batch coding and the information hierarchy the market requires.
OTC & Consumer Health
Retail-facing cartons that keep regulatory discipline while competing for attention on a pharmacy shelf.
Injection & Hospital Products
Printed cases and cartons for injection products — the work behind our Changshu Leiyunshang case production.
How it is made
Requirement review
The brand or its authorised regulatory team supplies the approved Braille content and destination-market requirements.
Structure & Braille layout
The tactile area is positioned with the carton dieline, clear of creases, seams and conflicting content.
Artwork & legibility check
Printed information, coding areas and the supplied tactile layout are checked together before tooling.
Sampling
A folded physical sample is used to review position and tactile result; any formal market verification remains with the customer approval process.
Printing, embossing & converting
Printing is followed by the approved tactile embossing and carton converting sequence.
Inspection & packing
Print, fold, glue and emboss position are checked against the approved sample before packing.
Why Yuan Packaging
- Pharmaceutical is long-standing business on both our label and carton lines, not an occasional job
- Carton, leaflet and primary label produced together under one specification and one approval trail
- Rapida 106 at 0.1 mm registration — what keeps regulatory small type sharp across a long run
- ISO 9001, ISO 14001:2015 and ISO 45001 management systems across all production
Frequently asked questions
Who confirms the Braille wording and requirements?
The brand or its authorised regulatory team supplies the approved content and destination-market requirements. Yuan applies that confirmed specification to the carton dieline and sample; the page does not substitute a generic rule for market-specific review.
How is the Braille checked before production?
Its position and tactile result are reviewed on the physical carton sample with the folds and printed layout present. Any required formal verification remains part of the customer's market-approval process.
