An auto bottom carton, also called a crash lock or auto lock carton, has a pre glued base that snaps flat and square with one motion, no tape or hand folding required. That instant, stable base is why it dominates high velocity fulfillment and automated cartooning lines. Choose it when your SKU is heavier than a standard folding carton can support, when line speed matters, or when you need retail ready shelf presence without adding assembly labor.
**TL;DR:** Proper grain direction aligned with score lines is crucial to prevent spring back and ensure reliable locking during production. Using a prototype built for your specific filled weight and line speed reduces the risk of locking failures and line jams. Heavier SKUs typically require micro-flute corrugated or coated recycled board, while lighter products suit SBS or FBB paperboard. Seal end closures are recommended for automated lines requiring tamper evidence, while tuck end styles suit manual filling at lower costs. Pilot testing on your actual line is essential to identify and resolve locking, glue, and erecting issues before large-scale production.
Table of Contents
- What Makes an Auto Bottom Carton Different From Snap Lock or Tuck End Styles?
- How Is an Auto Bottom Carton Engineered for Reliable Locking?
- Which Board Grade Handles Your Product’s Weight?
- What Top Closure Should Pair With Your Auto Bottom Base?
- What Tolerances Do Cartoners and Filling Lines Actually Require?
- What Drives Cost, MOQ, and Lead Time on These Orders?
- What Should You Supply for Design and Print Approval?
- How Does Yuan Packaging Support Auto Bottom Carton Buyers?
- Why Most Auto Bottom Carton Guides Skip the Hard Part
- Ready to Move From Spec Sheet to Sample?
- Sources
What Makes an Auto Bottom Carton Different From Snap Lock or Tuck End Styles?
The mechanics come down to one moment: squaring the blank. An auto bottom carton arrives from the manufacturer with its bottom panels pre glued along specific flaps. When your operator or cartoner pushes the flat blank into shape, those flaps snap into a locked, load bearing base instantly. No folding sequence, no tape gun, no waiting for glue to cure on the line.
Compare that to the alternatives you will see in supplier quotes:
- *Snap lock cartons** rely on interlocking tabs without pre applied adhesive, which erect fast but offer less rigidity under load.
- *Standard tuck end cartons** require manual folding of bottom flaps in sequence, adding seconds per unit that compound fast at volume.
- *Auto lock bottom cartons** (the same style, different name in some regions) trade a slightly higher unit cost for near zero assembly labor.
Watch for these terms interchangeably in specs: crash lock, auto lock bottom, auto bottom box, and sometimes CLB (crash lock bottom) in supplier shorthand. They all describe the same mechanism.

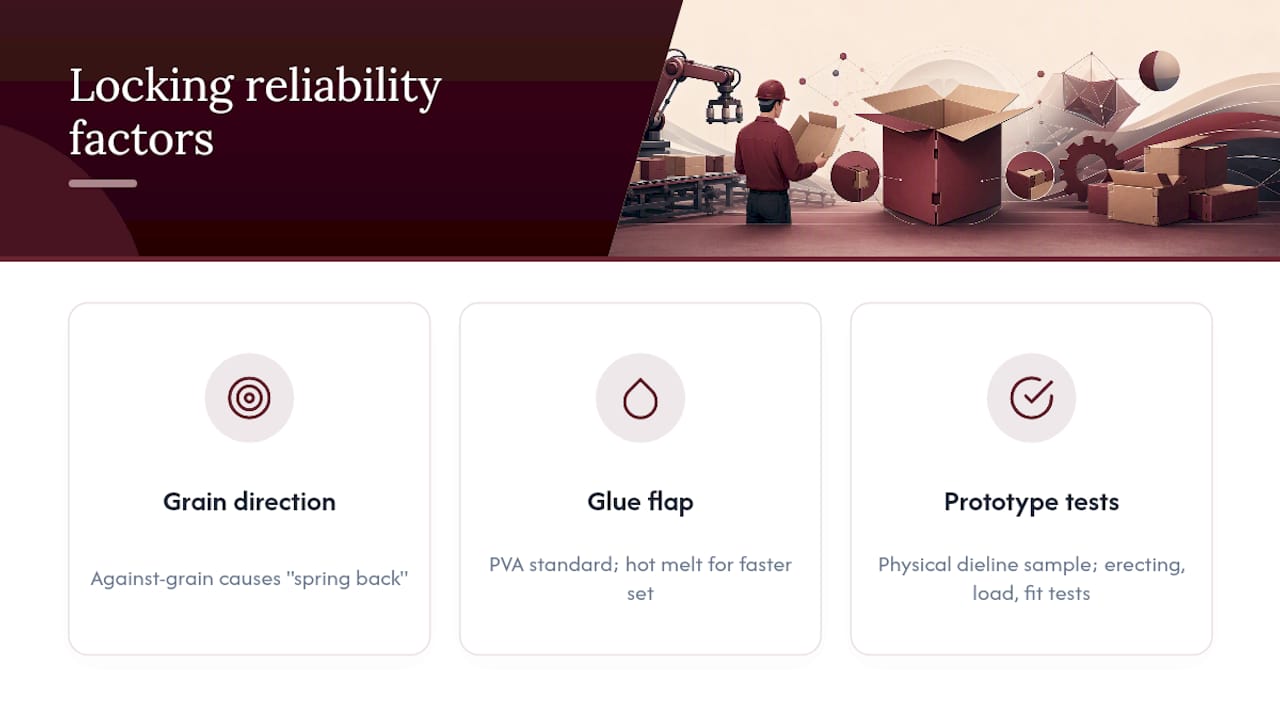

How Is an Auto Bottom Carton Engineered for Reliable Locking?

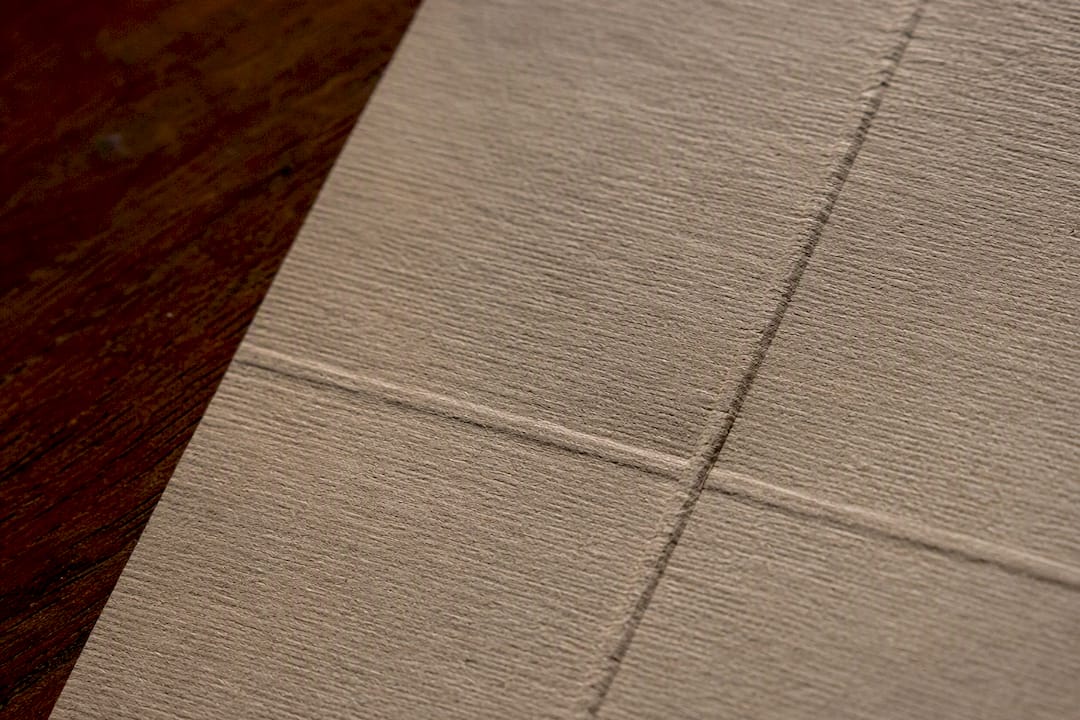

Grain direction is the detail most buyers skip and most often regret. Paperboard fibers run one direction through the sheet, and when a score line runs against the grain instead of with it, the crease resists folding cleanly. That resistance shows up on your line as “spring back,” where the bottom partially unfolds after erecting instead of staying locked flat. A structural prototype matched to your actual filled weight is the only reliable way to catch this before a production run.
Glue flap placement matters just as much. Suppliers typically specify PVA (polyvinyl acetate) for standard paperboard runs or hot melt adhesive when faster set times are needed on high speed lines. Flap width and adhesive type both affect how consistently the bottom locks across thousands of cycles, not just the first ten test units.
**Pro Tip:** _Never approve a digital proof alone. Request a physical dieline sample and run it through an actual erecting test, a load test with your product’s real weight, and a fit check with any inner inserts before you commit to a production order._
Ask your supplier for a crash lock cartons prototype specifically built to your dieline, not a generic stock sample. The difference between a carton that locks reliably and one that fails intermittently often lives in details a flat proof simply cannot show you.
Which Board Grade Handles Your Product’s Weight?
Board choice is where over-engineering quietly eats your margin. Most auto bottom cartons use SBS (solid bleached sulfate), FBB (folding box board), or CRB (coated recycled board) for lighter retail goods, while heavier or bulkier products move to micro-flute corrugated, typically E-flute or F-flute.
- *SBS/FBB paperboard** works well for cosmetics, supplements, and small retail goods generally under a few pounds per unit.
- *Micro-flute corrugated (E-flute, F-flute)** adds crush resistance and cushioning for heavier SKUs or rougher handling in the supply chain, while still printing crisply.
- *CRB** offers a lower cost middle ground when brand presentation matters less than shelf function.
Common supplier specs cite board weights in the 250 to 500 gsm range for paperboard auto bottom cartons, with corrugated options measured by flute profile rather than gsm alone. Thicker board and flute profiles do limit how tight your die cuts can run and how crisp fine print details appear, so match the substrate to the actual product weight rather than defaulting to the heaviest option available. If your SKU sits at the corrugated threshold, our corrugated boxes line covers the transition point in more detail.
What Top Closure Should Pair With Your Auto Bottom Base?
The bottom locks itself, but the top closure is where you decide how the product gets filled, opened, and resealed. Here is how the main options stack up:
- *RTE (Reverse Tuck End)**: Tucks fold in opposite directions on front and back panels, giving a clean look for manual retail packing where speed is secondary to appearance.
- *STE (Straight Tuck End)**: Both tucks fold the same direction, slightly faster to close by hand but less secure than RTE for repeated opening.
- *Tuck top**: A general term covering RTE and STE styles, best suited to manual or semi automated filling lines.
- *Seal end**: Glued shut on both ends, ideal for automated high speed filling and for products needing tamper evidence over consumer resealability.
For manual packing operations, tuck top styles keep costs low. For automated filling lines running at volume, seal end closures reduce jam risk and support tamper evident requirements more directly. Add on options like dust flaps, friction locks, or tamper strips depend on whether your product needs resealability or one time seal integrity. Pharma and nutraceutical brands often lean toward seal end with tamper strips; our tamper-evident cartons and seals page covers those requirements directly.
What Tolerances Do Cartoners and Filling Lines Actually Require?
Your machine vendor will ask for specifics your design team may not think to include on a standard spec sheet. Give them these up front and you avoid a failed pilot run:
- *Glue flap width**: consistent flap width across the run matters more than the exact dimension, since variance is what causes intermittent locking failures.
- *Adhesive type**: confirm PVA or hot melt based on your line speed and dwell time requirements.
- *Bundle and magazine feed sizing**: cartoners feed from stacked bundles, so blank thickness and bundle count need to match your hopper’s rated capacity.
What Drives Cost, MOQ, and Lead Time on These Orders?
Six variables move your quote more than any others: carton size, board grade, print coverage, finish selections, die complexity, and total run length. A simple one color print on stock size board with a basic die will always undercut a full bleed four color job with foil stamping and a custom shape.
- Offset production runs typically carry higher minimum order quantities, often in the thousands of units, while digital pilot runs allow smaller test batches at a higher per unit cost.
- Lead times after art and structural approval commonly run several weeks for standard orders, longer when custom finishes or complex dies are involved.
- Die complexity and finish count compound cost faster than board grade alone, so a straightforward auto bottom design with minimal finishing keeps unit economics tightest.
The real question is whether the labor savings and speed justify the added die and glue complexity versus a simpler tuck end box. For high volume, high uptime fulfillment operations, the math usually favors auto bottom. For low margin, low volume, lightweight SKUs, a simpler carton style may pencil out better.
What Should You Supply for Design and Print Approval?
Your design team needs to hand suppliers a complete file, not just artwork. That means the correct dieline with bleed, trim, and crease marks clearly separated, plus defined safe zones so text and logos never sit too close to a fold.
- Confirm the dieline matches the exact structural prototype you tested, not a generic template.
- Test finish choices like soft touch lamination, foil stamping, or aqueous and UV coatings against your actual glue points, since heavy lamination can interfere with adhesion at the crash lock flaps.
- If a window is part of the design, specify the film material and confirm it meets any regulatory labeling requirements for your category. Window carton builds require extra die precision to keep the cutout clean without weakening the fold.
- Pharma and nutraceutical brands should flag regulatory label zones early, since those often dictate panel layout before finishing decisions are even made. See our nutraceutical and health packaging resource for category specific requirements.
How Does Yuan Packaging Support Auto Bottom Carton Buyers?
Yuan Packaging has over 25 years of experience in custom packaging manufacturing and has delivered more than 100 million units to 5,000 brands worldwide. That track record covers exactly the kind of structural precision auto bottom cartons demand, from grain aligned scoring to glue flap consistency across long runs.
Before you send an RFQ, gather these details: product weight, filling method (manual or automated), target CPM if you are running a cartoner, your dieline or a request for one, desired finishes, and any sustainability or FSC certification requirements. Complete specs upfront mean fewer revision cycles and a faster path to a working prototype.
Request a structural sample or dieline prototype through our folding cartons page and see how your product performs before committing to a full production order.
Why Most Auto Bottom Carton Guides Skip the Hard Part
Most packaging content treats auto bottom cartons as a simple upgrade: faster, sturdier, done. That framing misses where projects actually fail, which is almost never the concept and almost always the execution details nobody bothers to specify in an RFQ.
Grain direction relative to score lines is the single most underrated variable in this entire category. Buyers obsess over board weight and finish options while treating the crease as a given, then wonder why a percentage of units spring back open on the line. The fix costs nothing beyond asking the right question at prototyping stage, yet almost no buyer’s guide mentions it.
The other gap is testing discipline. A flat proof or a single hand assembled sample tells you almost nothing about how a design performs at 150 cycles per minute for eight hours straight. If there is one thing worth prioritizing above material selection or finish choice, it is insisting on a pilot run against your real filled weight and your real line speed before signing off on a production quantity. Everything else, board grade, closure style, finish, is a tuning decision. Structural reliability is the one variable that determines whether the carton works at all.
