Custom Paper Tube Packaging for Bottles

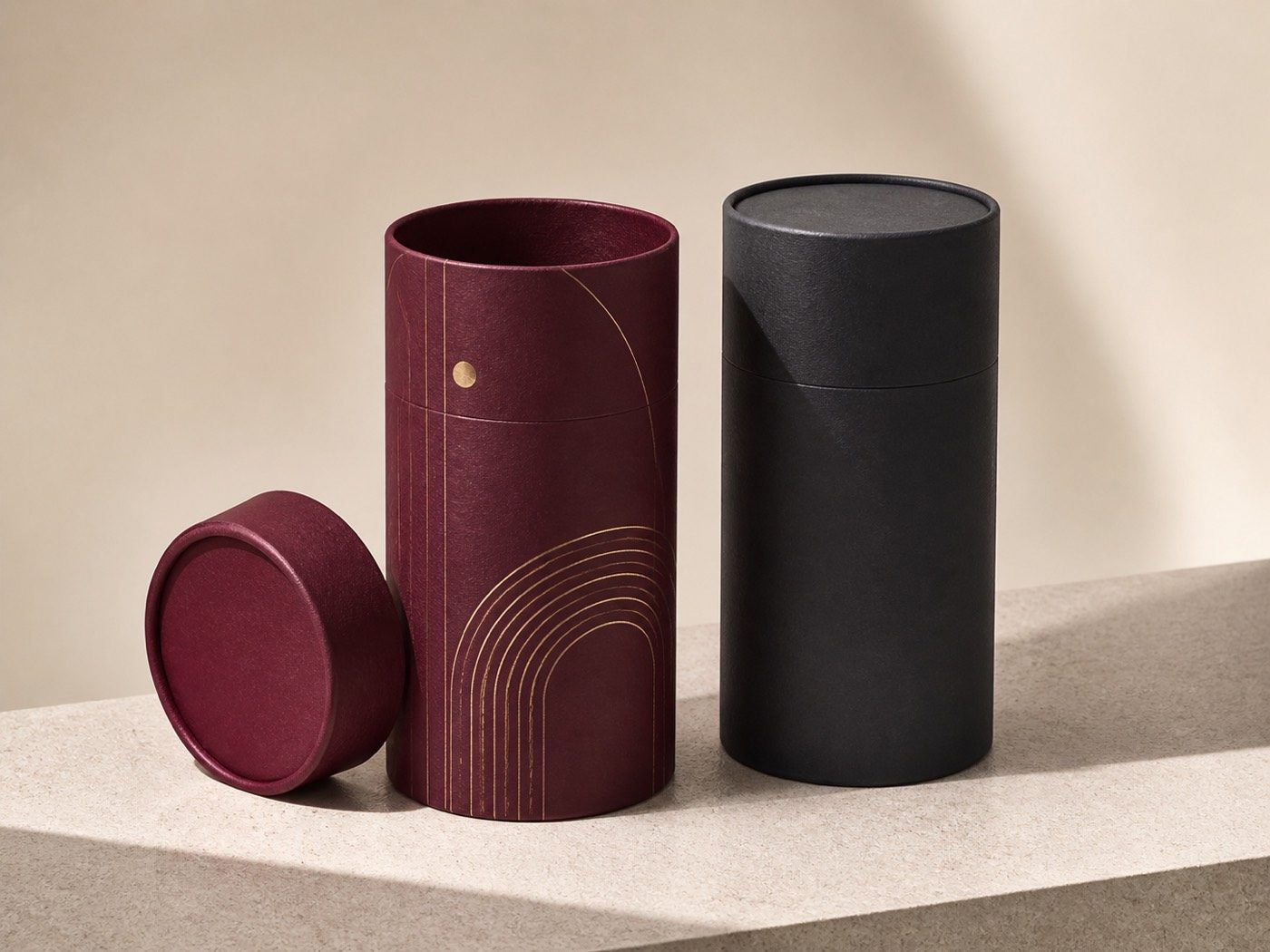

A tall paper cylinder developed around one bottle, with the internal support and opening sequence resolved as part of the structure.
At a glance
- Minimum order quantity
- Confirmed per specification — tube tooling is diameter-specific, so MOQ follows the diameter and finishing chosen
- Sampling
- Presentation-quality sample in 5–7 working days. The sample cost is credited against your first approved production order.
- Production lead time
- 15–20 working days after artwork approval; complex finishing 25–30 working days
- Delivery to Europe
- DDP or DAP to the EU and the UK, DDP to Switzerland; your customs broker confirms duty and VAT rates
- Production
- Made to order (OEM/ODM)
- Country of origin
- Huai'an, Jiangsu, China
- Single-Bottle Fit
Overview
A bottle tube is proportioned around a single vessel rather than a generic cylinder. Its job is to keep the bottle presented centrally, prevent movement inside the pack and give a tall, uninterrupted surface for the printed wrap.
The vessel itself drives the structural work. The body profile, closure and base all affect where a collar or cradle can support it, so development should use the actual bottle or reliable dimensional information and finish with a loaded sample rather than an empty tube.
A bottle tube is usually a lid and base construction stretched to the height of the bottle, with the support built inside it. The body is a tall wound tube closed at the base; inside, a collar at the shoulder, a cradle under the bottle or a spacer around the neck holds the vessel on the centre line. The lid then closes over the body or over a neck collar.
What to decide for this format
Vessel profile and support points
Identify where the bottle can be held without loading a decorative closure or allowing the body to move against the tube.
Opening and presentation
Choose the lid action and how much of the bottle should be revealed or lifted into view when the tube opens.
Getting the bottle out
Decide how the bottle is lifted from a narrow tube, for example by finger clearance at the neck or a ribbon pull beneath it, and check it with the real bottle.
Across the Paper Tubes & Cylinder Boxes range
This page covers what is particular to this product. The full lists for the whole range are set out once, on the Paper Tubes & Cylinder Boxes page:
- Materials and finishes
- What you can customise
- Applications
- How it is made
- What drives the cost
- Why work with us
What applies to this product
- Materials
- Wound Paper Body; Printed Art Paper Wrap; Specialty & Textured Papers; Kraft & Recycled Board; Paper & Board Ends; Inserts & Cradles
- Printing & Finishes
- Hot Foil Stamping; Embossing & Debossing; Soft-Touch & Matte Lamination; Spot UV; Seam Alignment
- Applications
- Spirits & Wine
- How it is made
- Product & opening review; Body & end specification; Wrap artwork & seam placement; Sampling; Print & finish the wrap; Forming, wrapping & assembly
Specifications
| Minimum order quantity | Confirmed per specification — tube tooling is diameter-specific, so MOQ follows the diameter and finishing chosen |
|---|---|
| Production lead time | 15–20 working days after artwork approval; complex finishing 25–30 working days |
| Printing | Offset printing of the wrap on the Rapida 106 — CMYK and Pantone spot colours |
| Material basis | Paper-based construction; recycled-content and FSC-certified stocks available |
Terms for this specification
- Sampling
- Presentation-quality sample in 5–7 working days. The sample cost is credited against your first approved production order.
- Colour matching
- Pantone references and physical samples are used where the selected print process supports them. The approval method follows the substrate, artwork and process.
- Certifications
- ISO 9001, ISO 14001:2015, ISO 45001 and China Environmental Labelling (Ten-Ring). ISO 22000 applies to eligible food-contact work.
- Sustainable options
- FSC-certified or recycled-content paper and board, water-based inks and adhesives, and fibre-based fitments are available where the selected construction supports them.
Design & artwork
From an artwork check, through a dimensioned dieline and print-ready files, to a full concept package across a range — done by the factory that will make it.
Frequently asked questions
Where does the wrap seam go on a bottle tube?
The wrap meets itself in one vertical seam that runs the full height of the tube, and on a tall pack it is easy to see. It is usually placed at the back or under a vertical element of the design, and the artwork is drawn so colours and patterns meet cleanly across it. Its position is fixed on the dieline before the artwork is finalised.
What do you need to develop a bottle tube?
The actual bottle is preferable. Otherwise provide dependable overall dimensions, the bottle profile and closure information, together with the intended presentation and shipping context.
How is the height of a bottle tube worked out?
From the bottle, plus the support beneath it and a small clearance above the closure, so the lid never presses on a stopper, capsule or wax seal. The allowance depends on the support used and the shape of the closure, so it is set from the real bottle rather than its catalogue height, and checked when the loaded sample is closed.
Is a bottle tube an alternative to a rigid gift box?
It can be, and it is the lighter of the two. A tube suits a single bottle and an upright, cylindrical presentation, with the bottle held by a collar or cradle inside; laid on its side, it will roll. A rigid box gives flat faces, a hinged or lift-off lid and room for more items. Choose from the presentation you want and what goes in the pack, then sample the chosen format with the bottle.
From the Journal
Related products
Request a custom packaging quote
What to send for a quote
- The product it is for, and the format you have in mind
- Size as length × width × height, and whether those are inside or outside dimensions
- Quantity, or two or three quantities if you want to compare unit prices
- Material and finish preferences, or the look you are after
- Artwork status: print-ready files, a draft, or nothing yet
- The date you need the goods by
- The destination country
Missing some of these? Send what you have, and we will ask about the rest.
